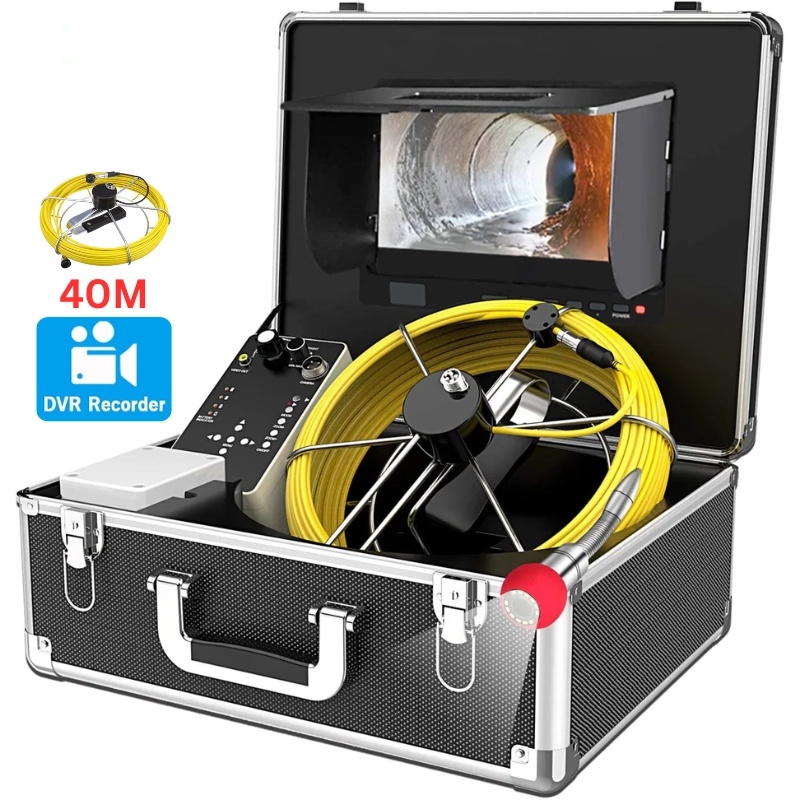

Sewer inspection camera, 40 metres, iUni ICT7, DVR video recording, 10-inch display
BGN 1,865.84 (VAT included)
iUni® Original 30 Day Returns Free shipping over 119 € 24 Month WarrantyDescription
Video inspection cameras CANNOT BE RETURNED unless the products are returned sealed, with the original seal intact and showing no signs of use.
MAXIMUM VISIBILITY IN HARD-TO-REACH PLACES
The iUni ICT7 is a high-quality inspection camera and the first choice for professional inspection of drainpipes, ventilation ducts, chimneys and many other hard-to-reach pipes.
Video inspection of pipelines is necessary when you wish to check the structural condition of the pipelines to determine whether there are any defects or problems that need to be rectified, when attempting to identify foreign objects within the pipelines, and when trying to locate sources of leaks. The information provided by the video system helps specialist sewer inspection or video inspection personnel to visualise the full picture of the sewer system and sewer collector pipes.
When they intervene to unblock the sewer with a high-pressure jet and still encounter a severe blockage, drain cleaners can only assume that there may be a blockage in a specific area of the pipe. And the only solution is video inspection.
Video inspection is a key operation for determining the condition of ageing pipes or for checking the work carried out.

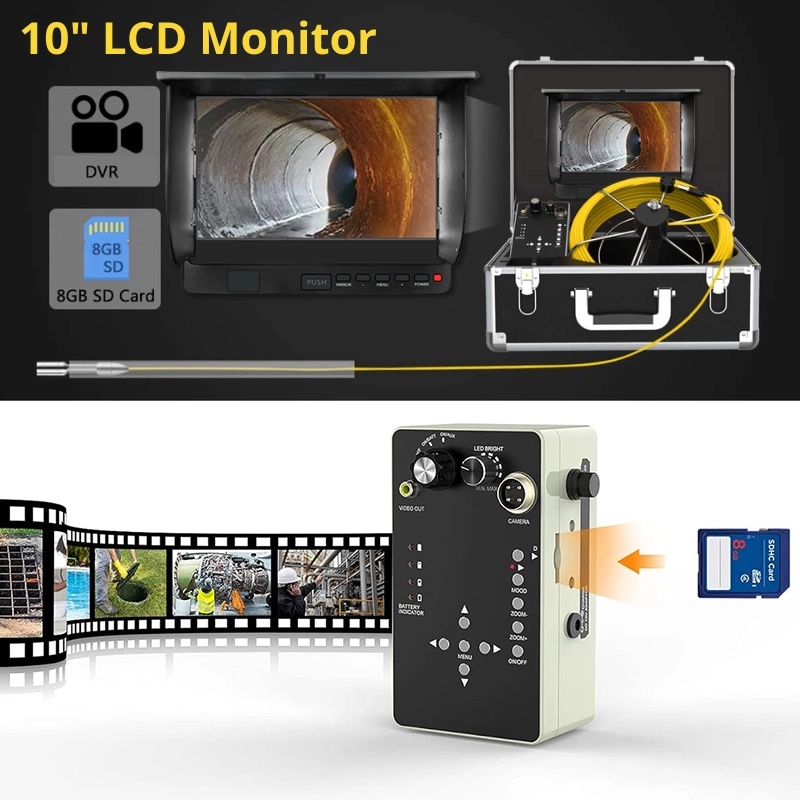

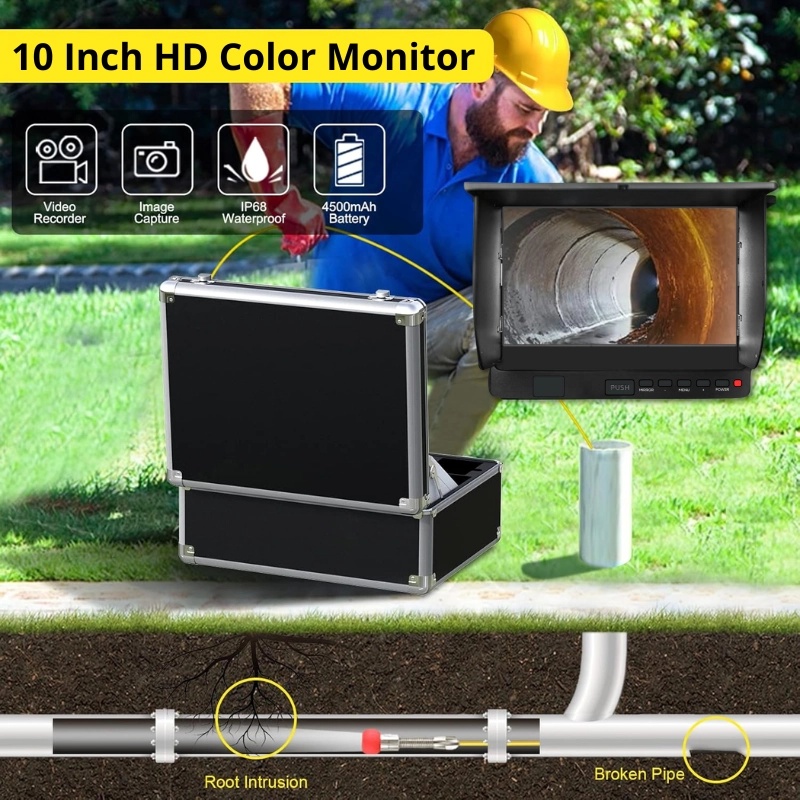

10" COLOUR LCD MONITOR
The image will be displayed on a 10-inch colour monitor, equipped with a menu button to adjust the image and view.
The colour monitor is also fitted with a plastic sun visor to ensure better visibility during outdoor inspections.
Specifications:
- Dimensions: 10-inch TFT LCD colour
- Pixels: 1024 x RGB(3) x 600
- Power supply: 12V DC
- Language: English
- Aspect ratio: 16:9
- Operating temperature: -20°C to 60°C
FLEXIBLE HD CAMERA

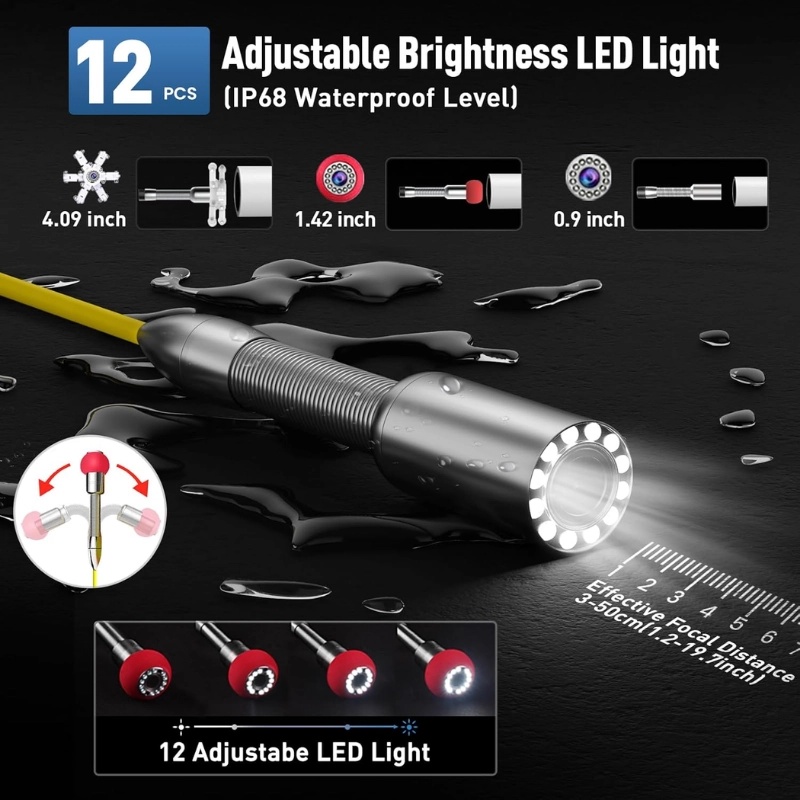

The camera is equipped with a flexible joint to move around corners and a scratch-resistant sapphire lens. The camera is illuminated by 12 white LEDs, the intensity of which can be adjusted.
This camera can achieve a viewing angle of 92 degrees, and its average power consumption is 100 milliamps.
Specifications:
- Dimensions: 23 mm x 120 mm; front camera size - 23 mm
- Camera material: stainless steel
- Camera lens: sapphire glass
- Sensor size: 1/3-inch CCD or CMOS
- Pixels: 800 TVL HD
- Illumination: 12 white LEDs, adjustable
- Power consumption: 100 mA
- Power supply: DC 12V
- Water resistance: IP68
- Operating temperature: -10°C to 50°C

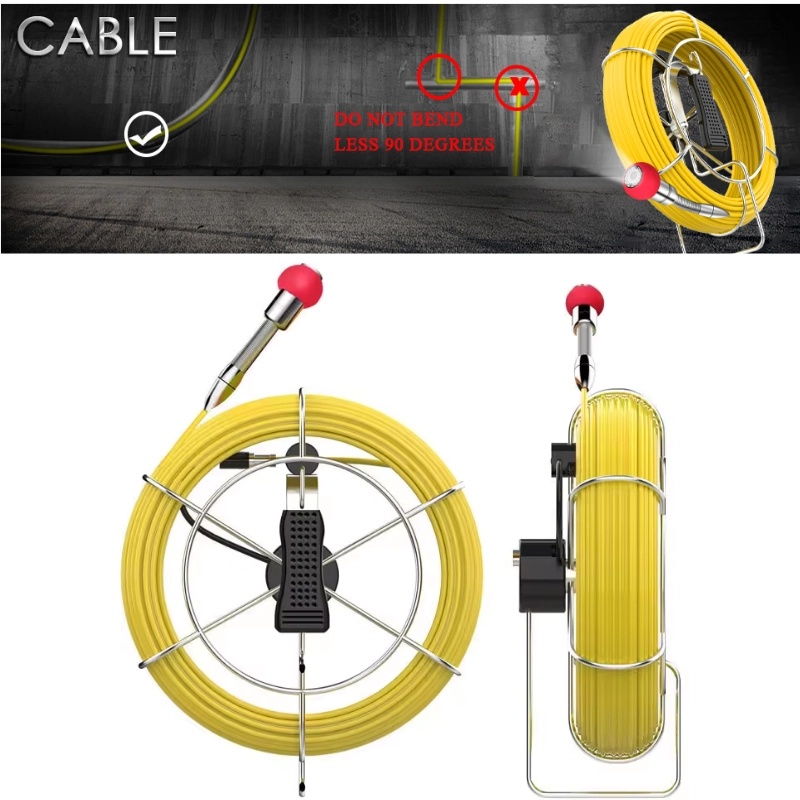

FIBRE-GLASS CABLE - 40 METRES
The semi-rigid/corrosion-resistant/cold-resistant/tensile-resistant cable can be moulded and will retain its shape, ensuring a smoother inspection.

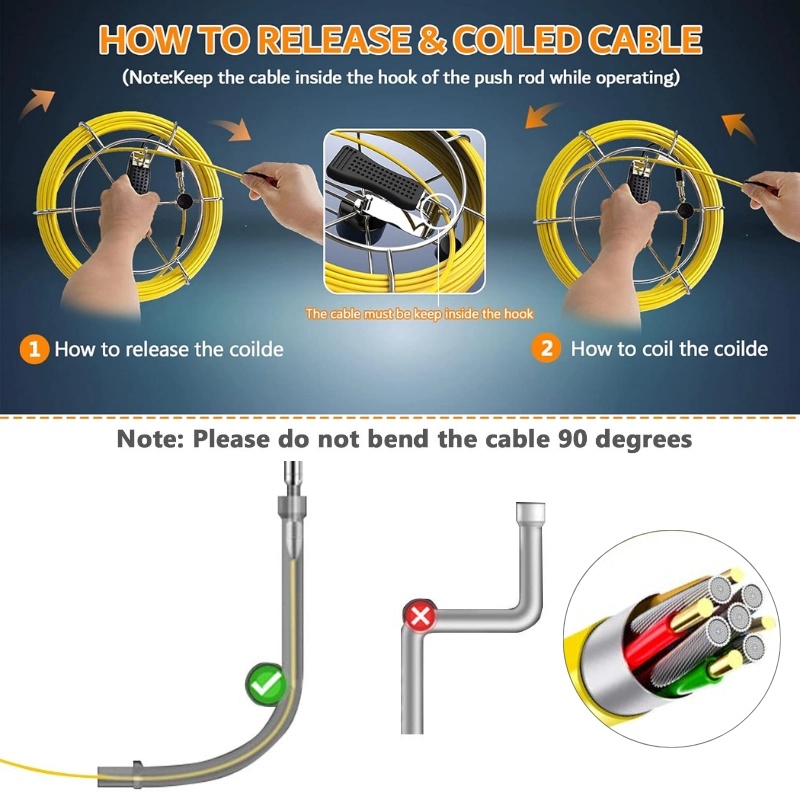

CAUTION! Do not bend the cable at a 90° angle to avoid damage/breakage.
Specifications:
- Cable material: fibreglass
- Water-resistant
- Cable length: 40 metres
- Stainless steel reel
- Diameter: 4.8 mm
- Colour: yellow

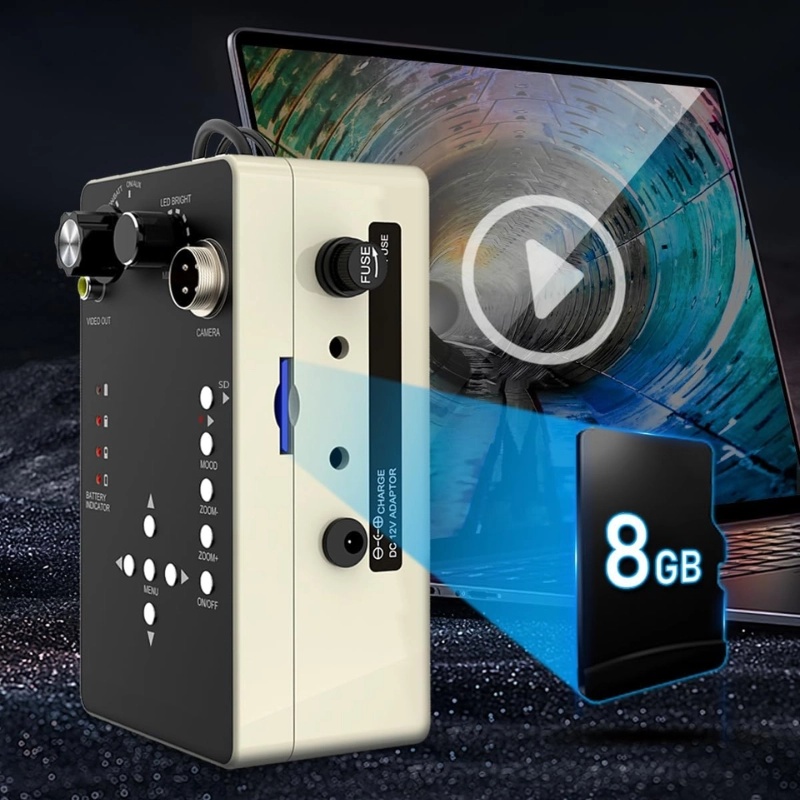

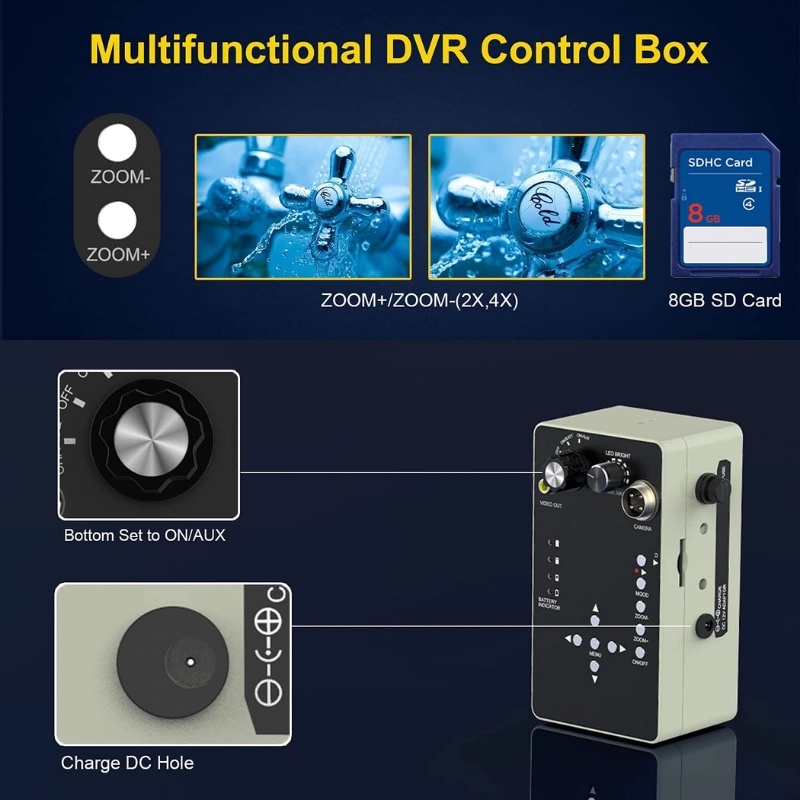

CONTROL PANEL
Switch on the camera and LCD monitor from the control panel. You can also adjust the camera’s LED light.
With the DVR recording function, the control panel comes with an 8 GB SD card included; the maximum supported memory is 32 GB.
You can record video or audio via the DVR control panel and then transfer the video/audio to a computer.
Specifications:
- Power supply: 12 V-
Power consumption:
200 mA- Storage: 8 GB SD memory card (included)
- Pixels: 720 x 576 (D1)
- Digital clock and digital calendar-
Battery level
indicator- Video/audio recording (DVR) YES, including Picture-Shot
function- Format: AV

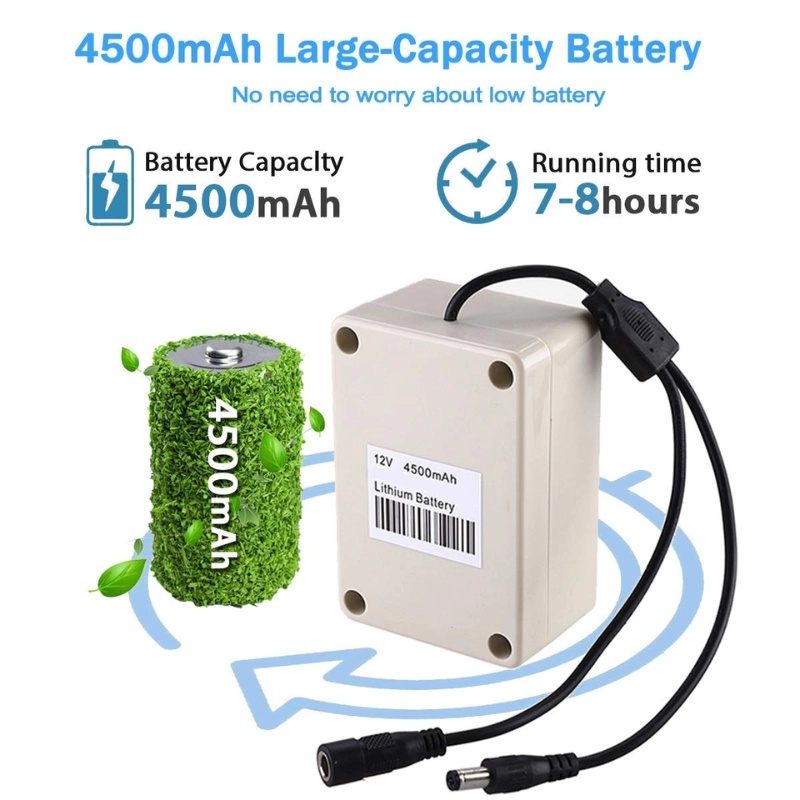

4500mAh RECHARGEABLE BATTERY
The professional sewer inspection camera is equipped with a powerful rechargeable lithium battery with a voltage of 12 V and a capacity of 4500 mAh, which operates continuously for 7–8 hours after a full charge.
The package comes with a power adapter.
It is very convenient to use outdoors without a mains power supply.
Specifications:
- Battery capacity: 4500 mAh
- Runtime: 7–8 hours
- Power supply - input: AC 90-240V; output: DC 12V 1000mA

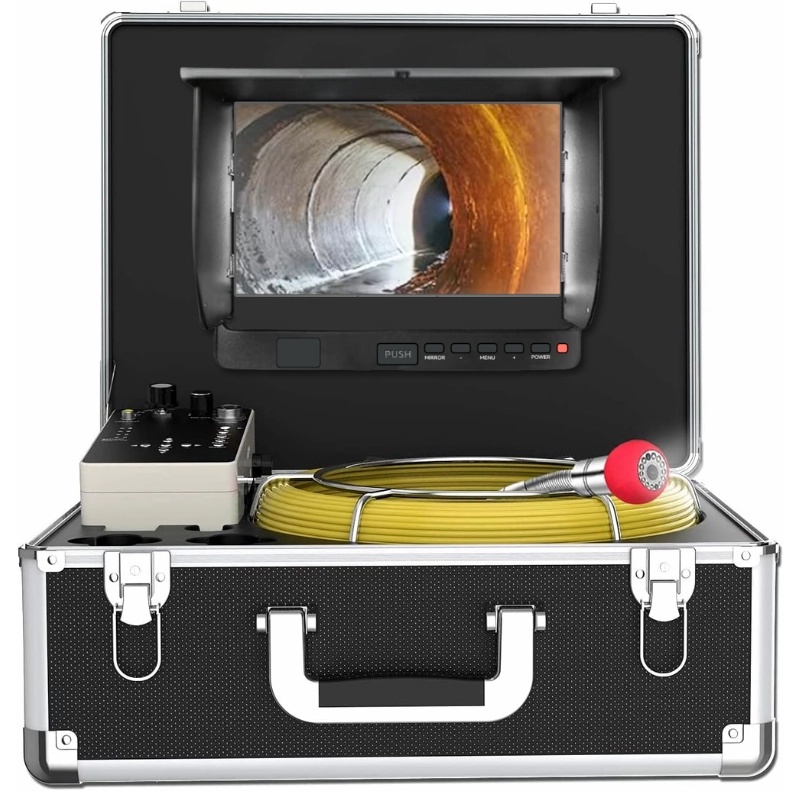

- 1 x 10" TFT colour LCD monitor -
1 x HD camera
- 1 x 40-metre cable
- 1 x cable reel -
1 x camera mounting bracket with wheels
- 1 x rechargeable battery
- 1 x rechargeable battery
- 1 x DVR
control panel - 1 x connection cable
- 1 x spanner
- 1 x aluminium case
- 1 x user manual

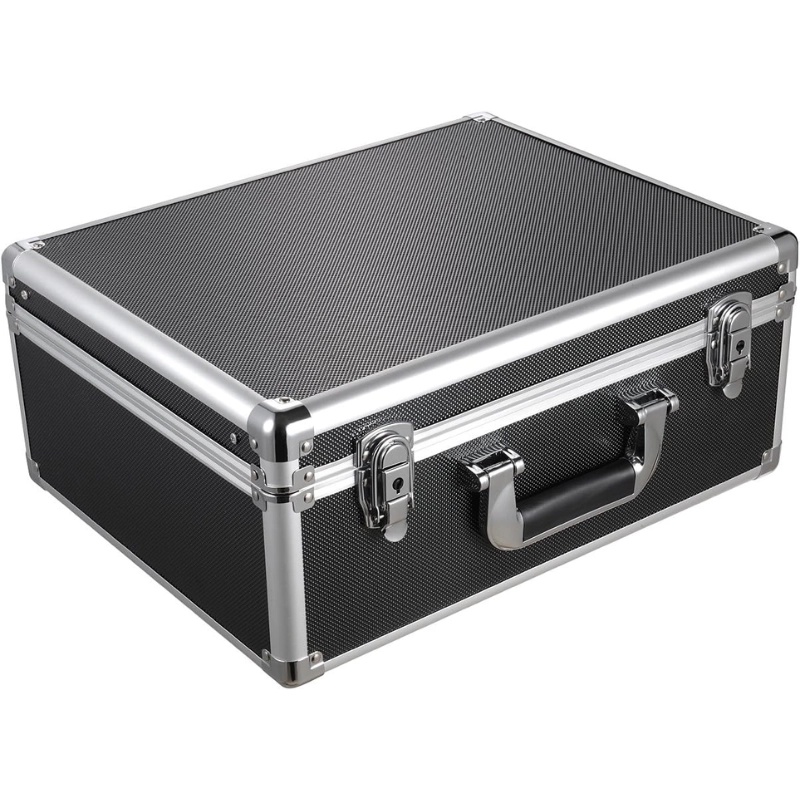

All parts are stored in an aluminium alloy case for convenient transport.
