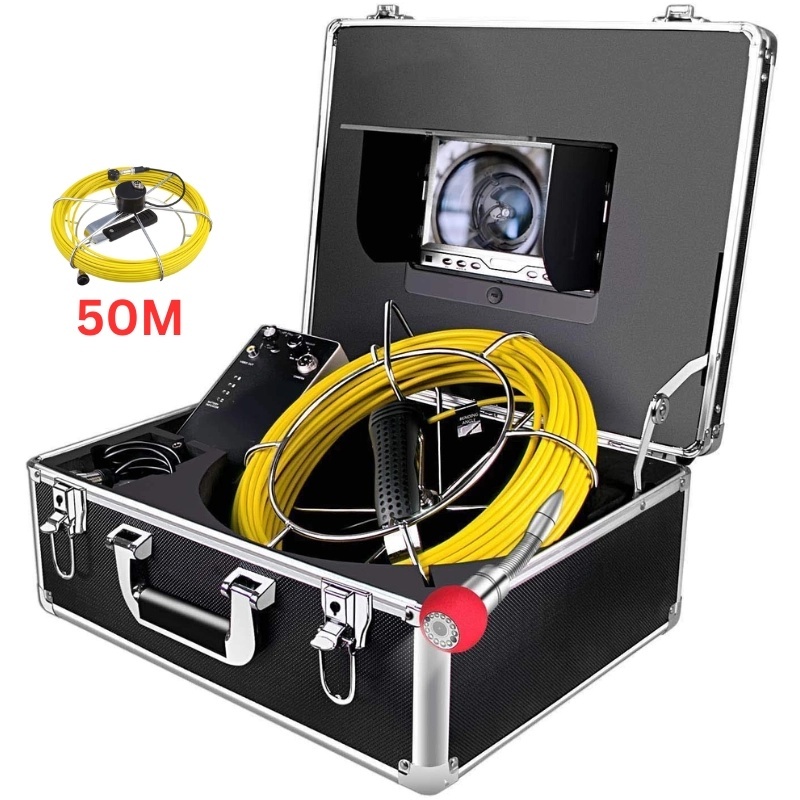

Sewer inspection camera, 50 m, iUni ICT16, 7-inch monitor

MAXIMUM VISIBILITY IN HARD-TO-REACH PLACES

The iUni ICT16 is a high-quality inspection camera and the first choice for professional inspection of drainpipes, ventilation ducts, chimneys and many other hard-to-reach pipes.

Video inspection of pipelines is necessary when you want to check the structural condition of the pipelines to determine whether there are any faults or problems that need to be rectified, when you are trying to identify foreign objects in the pipelines, and when you are trying to locate sources of leaks. The information provided by the video system helps specialist sewer inspection or video inspection personnel to visualise the full picture of the sewerage system and collection pipes.

When they intervene to unblock the sewer with a high-pressure jet and still encounter a severe blockage, drain cleaners can only assume that there may be a blockage in a specific area of the pipe. And the only solution is video inspection.

Video inspection is a key operation for determining the condition of ageing pipes or for checking the work carried out.

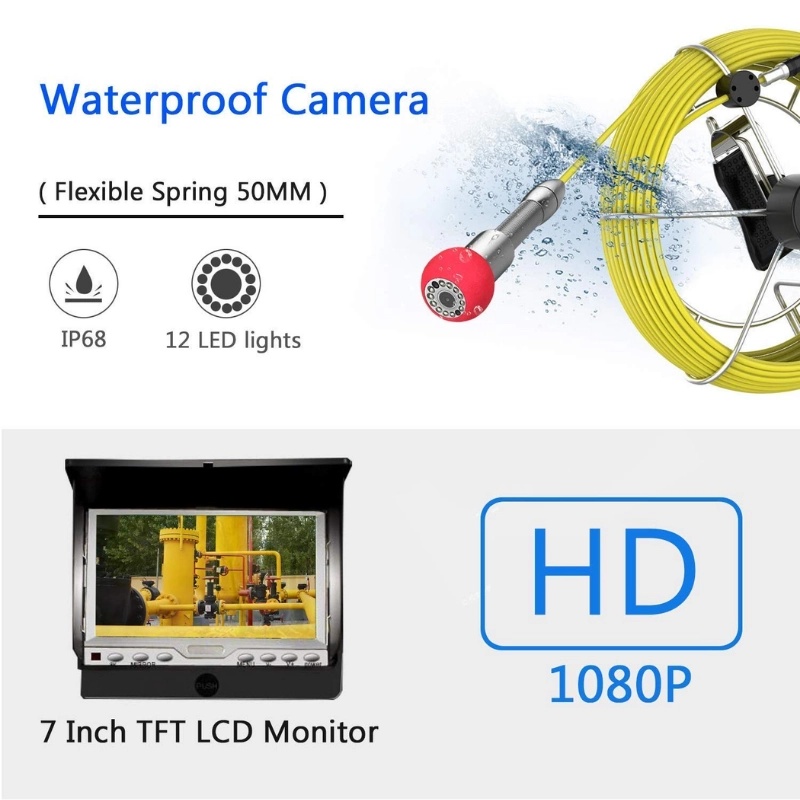

FLEXIBLE HD CAMERA

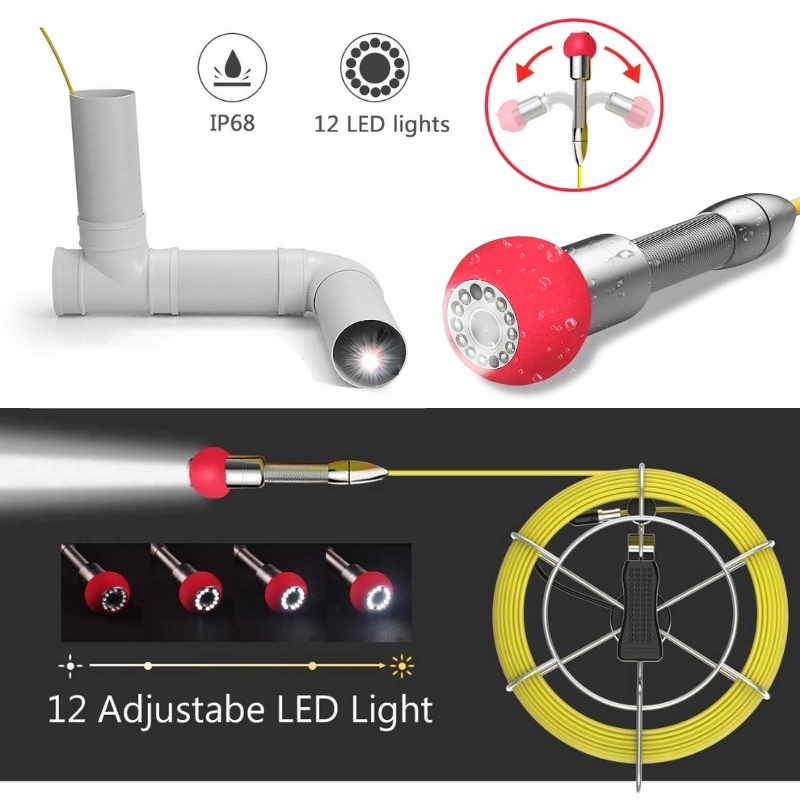

The camera is equipped with a flexible joint to move around corners, and a scratch-resistant sapphire lens. The camera is illuminated by 12 white LEDs, the intensity of which can be adjusted.
This camera can achieve a viewing angle of 92 degrees, and its average power consumption is 100 milliamps.

Specifications:

- Dimensions: 23 mm x 120 mm; front camera size - 23 mm

- Camera material: stainless steel

- Camera lens: sapphire glass

- Sensor size: 1/3-inch CCD or CMOS

- Pixels: 800 TVL HD

- Illumination: 12 white LEDs, adjustable

- Power consumption: 100 mA

- Power supply: DC 12V

- Water resistance: IP68

- Operating temperature: -10°C to 50°C

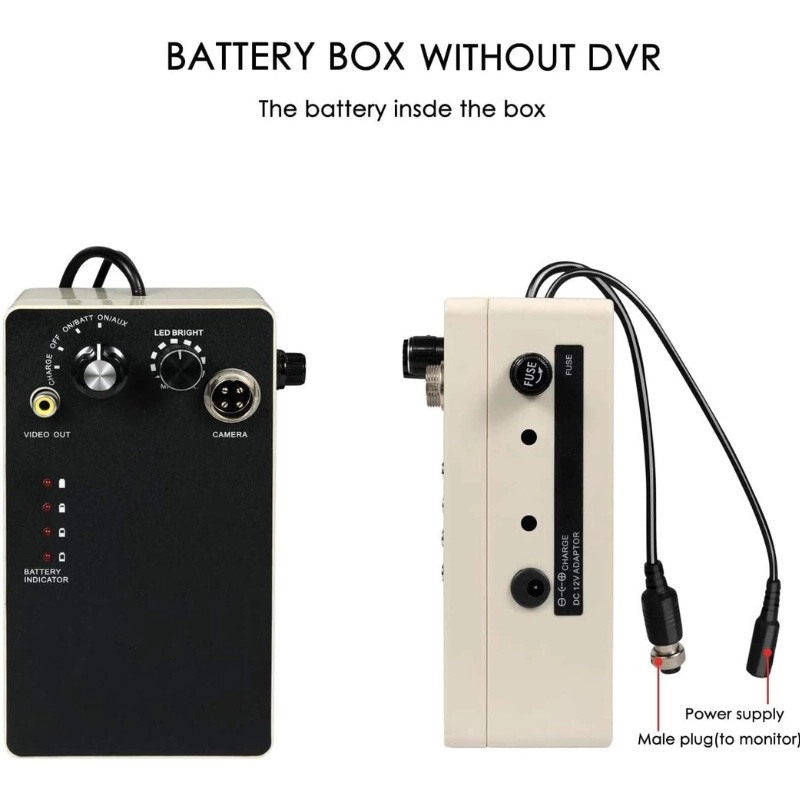

CONTROL PANEL

Switch on the camera and LCD monitor from the control panel. You can also adjust the camera’s LED light.

Specifications:

- Power supply: 12 V

- Current consumption: 200 mA

- Battery level indicator

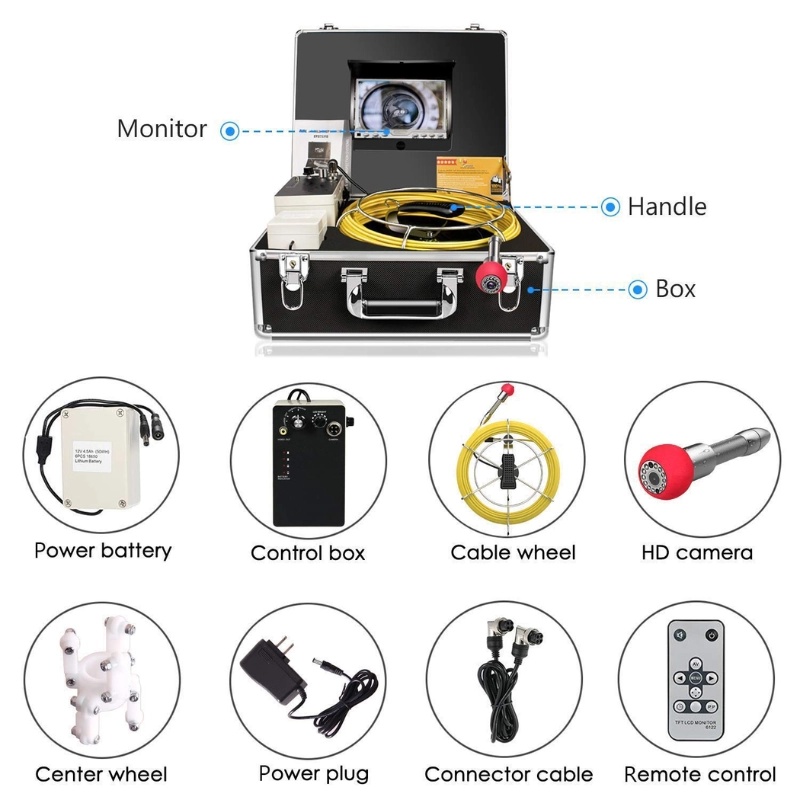

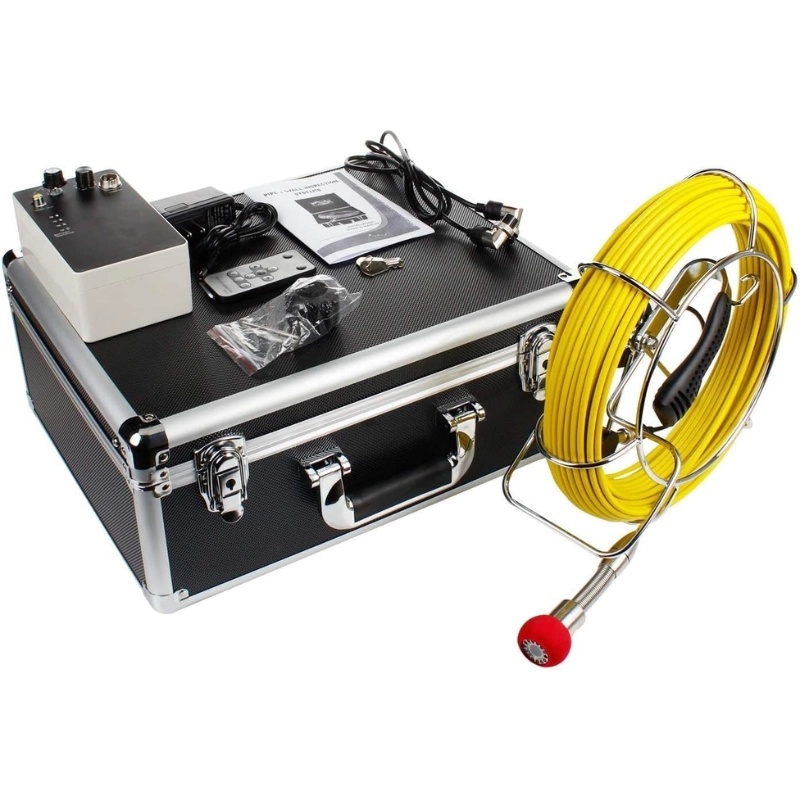

- 1 x 7-inch TFT colour LCD monitor -
1 x HD camera

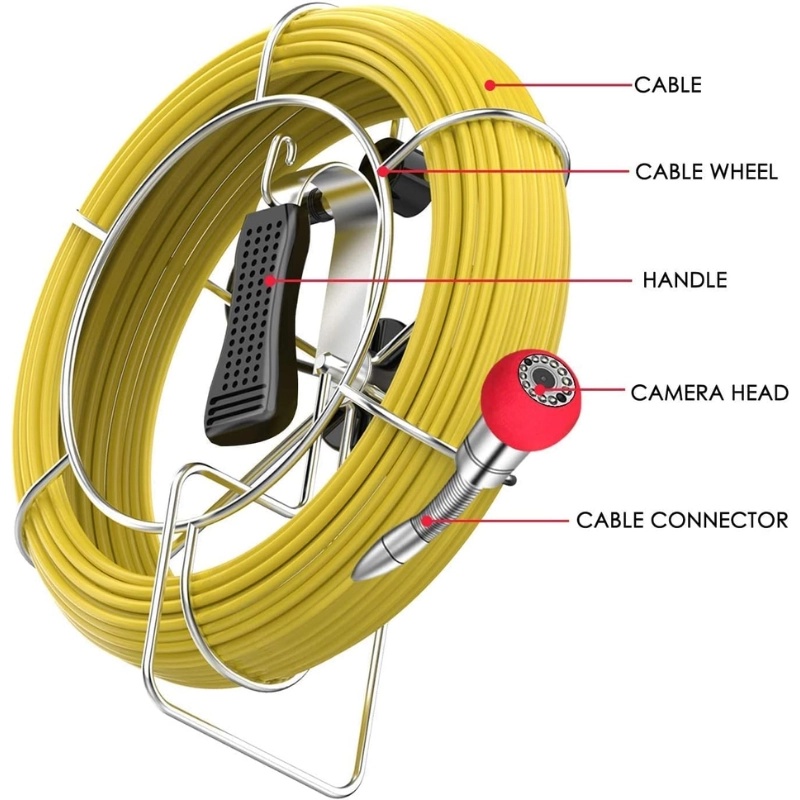

- 1 x 50-metre cable
- 1 x cable reel -
1 x remote control
- 1 x camera mounting bracket with wheels

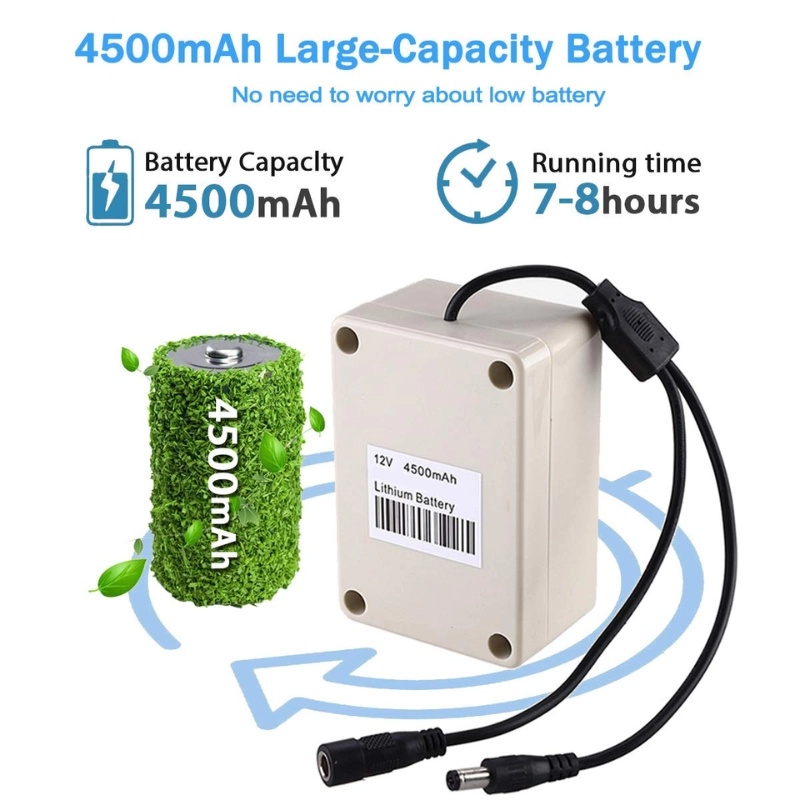

- 1 x 4500mAh rechargeable battery
- 1 x control panel
- 1 x charger
- 1 x key
- 1 x connecting cable
- 1 x aluminium case
- 1 x user manual

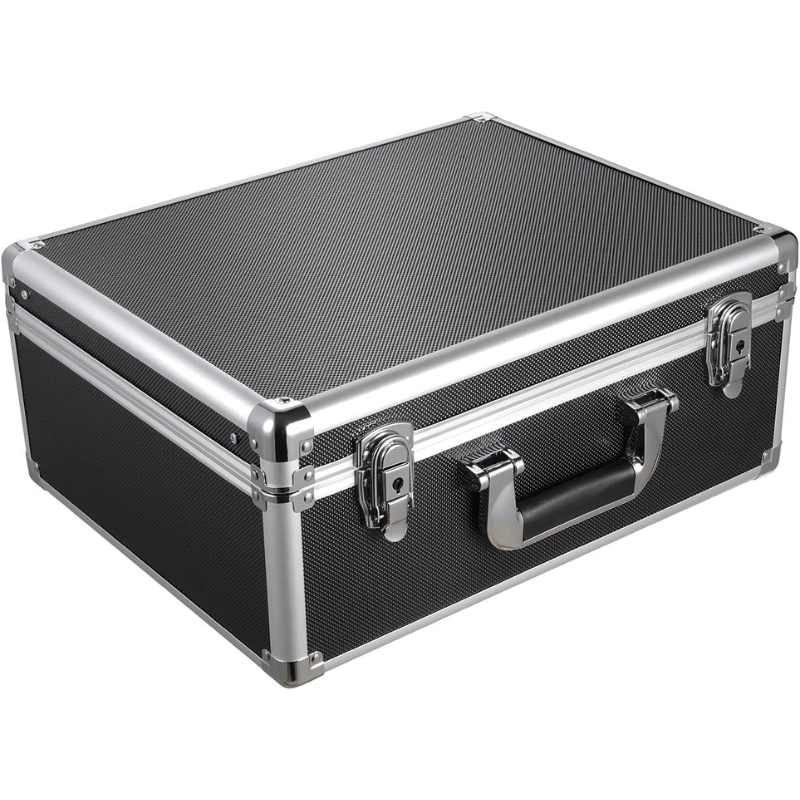

All parts are stored in an aluminium alloy case for convenient transport.
