Sewer inspection camera, 35 metres, iUni ICT14, DVR video recording, 10-inch display

MAXIMUM VISIBILITY IN HARD-TO-REACH PLACES

The iUni ICT14 is a high-quality inspection camera and the first choice for professional inspection of drainpipes, ventilation ducts, chimneys and many other hard-to-reach pipes.

Video inspection of pipelines is necessary when you want to check the structural condition of the pipelines to determine whether there are any defects or problems that need to be rectified, when you are trying to identify foreign objects in the pipelines, and when you are trying to locate sources of leaks. The information provided by the video system helps specialist sewer inspection or video inspection personnel to visualise the full picture of the sewer system and sewer collector pipes.

When they intervene to unblock the sewer with a high-pressure jet and still encounter a severe blockage, drain cleaners can only assume that there may be a blockage in a specific area of the pipe. And the only solution is video inspection.

Video inspection is a key operation for determining the condition of ageing pipes or for checking the work carried out.

FLEXIBLE HD CAMERA

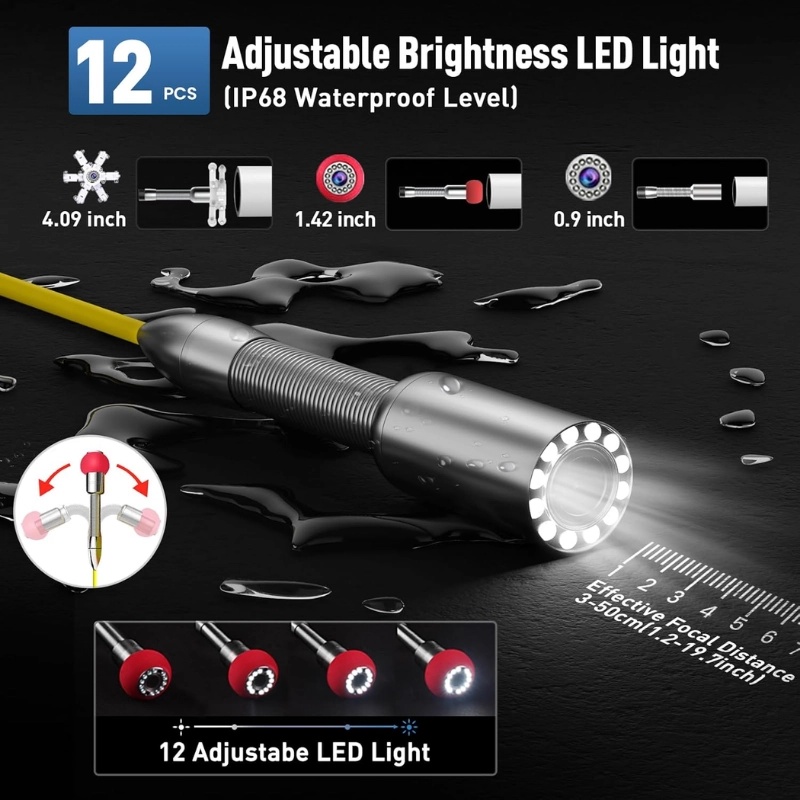

The camera is equipped with a flexible joint to move around corners, and a scratch-resistant sapphire lens. The camera is illuminated by 12 white LEDs, the intensity of which can be adjusted.
This camera can achieve a viewing angle of 92 degrees, and its average power consumption is 100 milliamps.

Specifications:

- Dimensions: 23 mm x 120 mm; front camera size - 23 mm

- Camera material: stainless steel

- Camera lens: sapphire glass

- Sensor size: 1/3-inch CCD or CMOS

- Pixels: 800 TVL HD

- Illumination: 12 white LEDs, adjustable

- Power consumption: 100 mA

- Power supply: DC 12V

- Water resistance: IP68

- Operating temperature: -10°C to 50°C

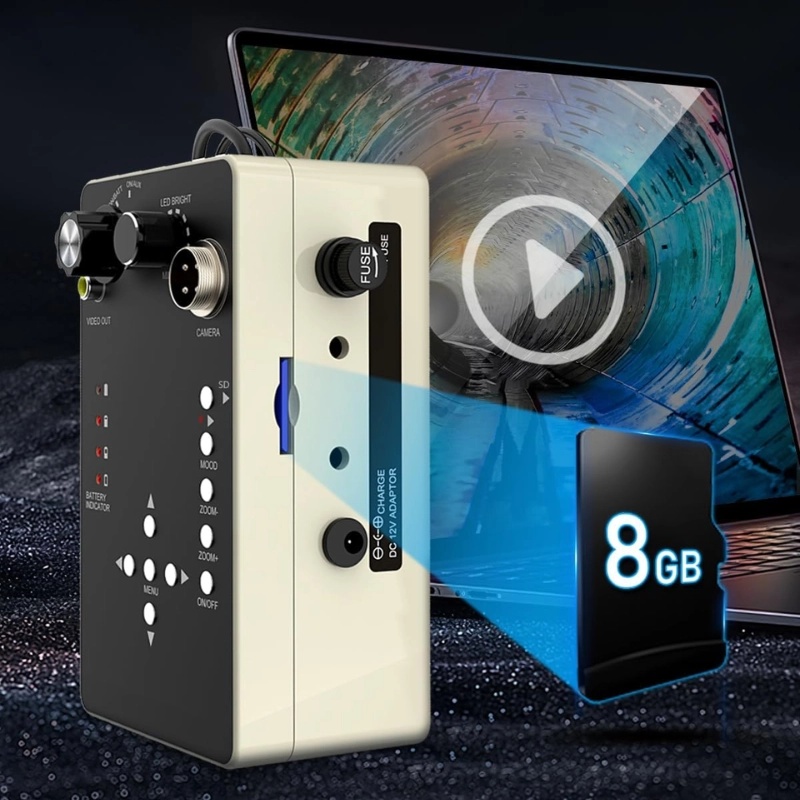

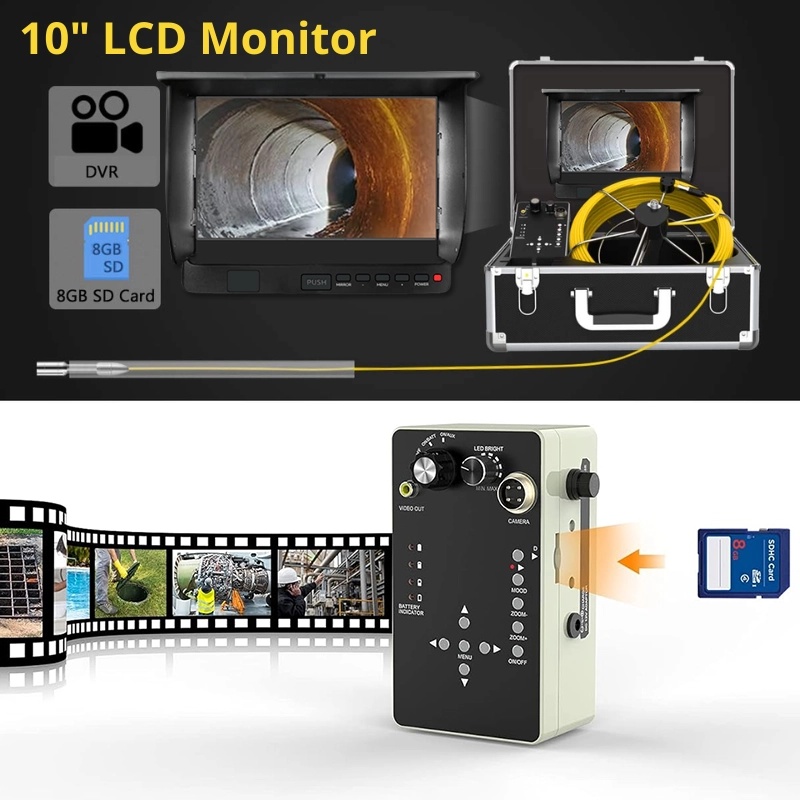

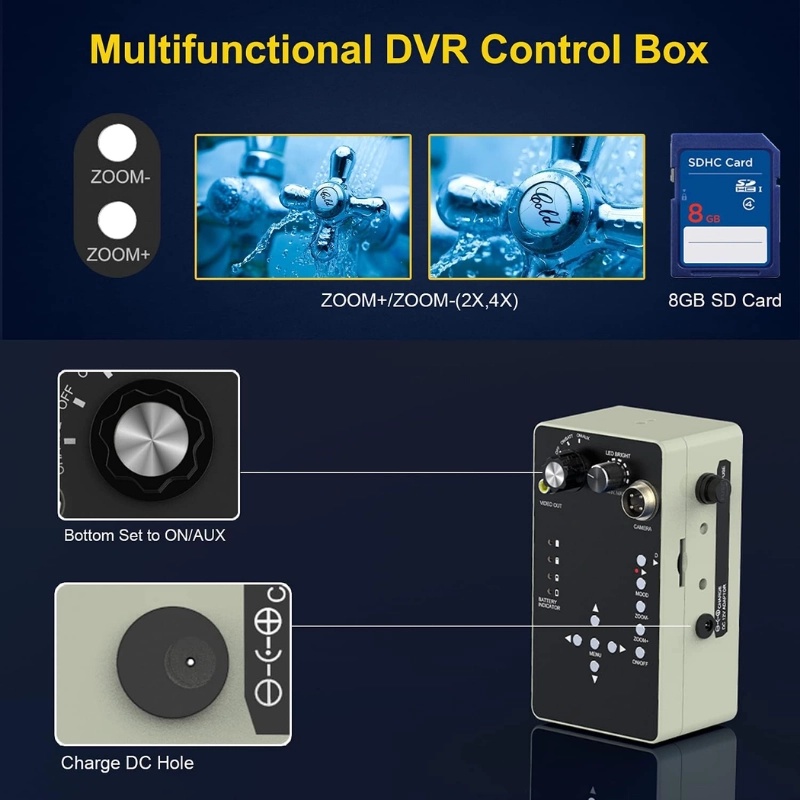

CONTROL PANEL

Switch on the camera and LCD monitor from the control panel. You can also adjust the camera’s LED light.

With the DVR recording function, the control panel comes with an 8 GB SD card included; the maximum supported memory is 32 GB.

You can record video or audio via the DVR control panel and then transfer the video/audio to a computer.

Specifications:

- Power supply: 12 V-
Power consumption:
200 mA- Storage: 8 GB SD memory card (included)
- Pixels: 720 x 576 (D1)
- Digital clock and digital calendar-
Battery level
indicator- Video/audio recording (DVR) YES, including Picture-Shot
function- Format: AV

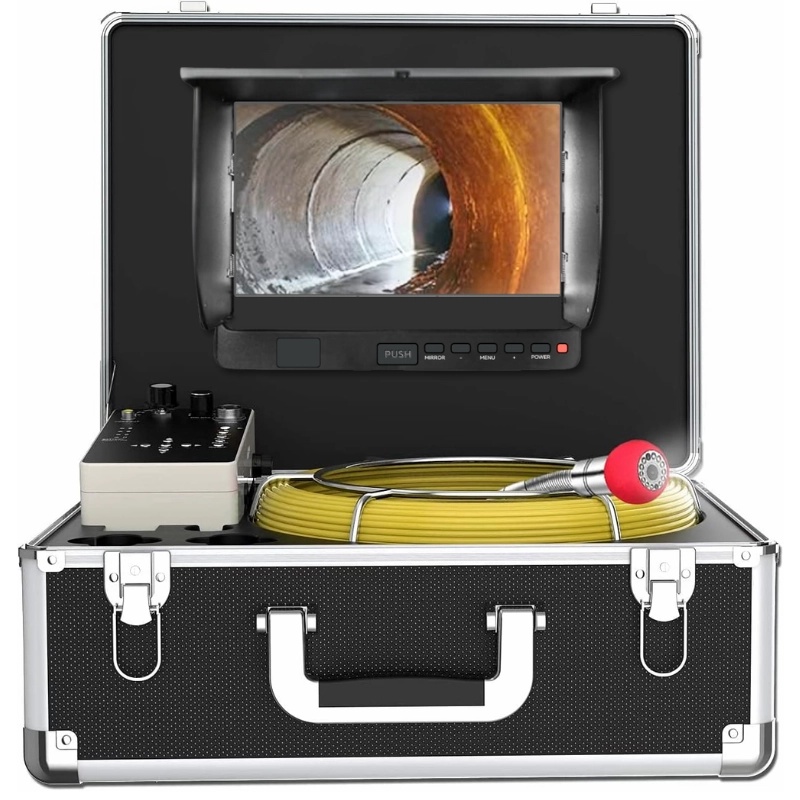

- 1 x 10" TFT colour LCD monitor -
1 x HD camera

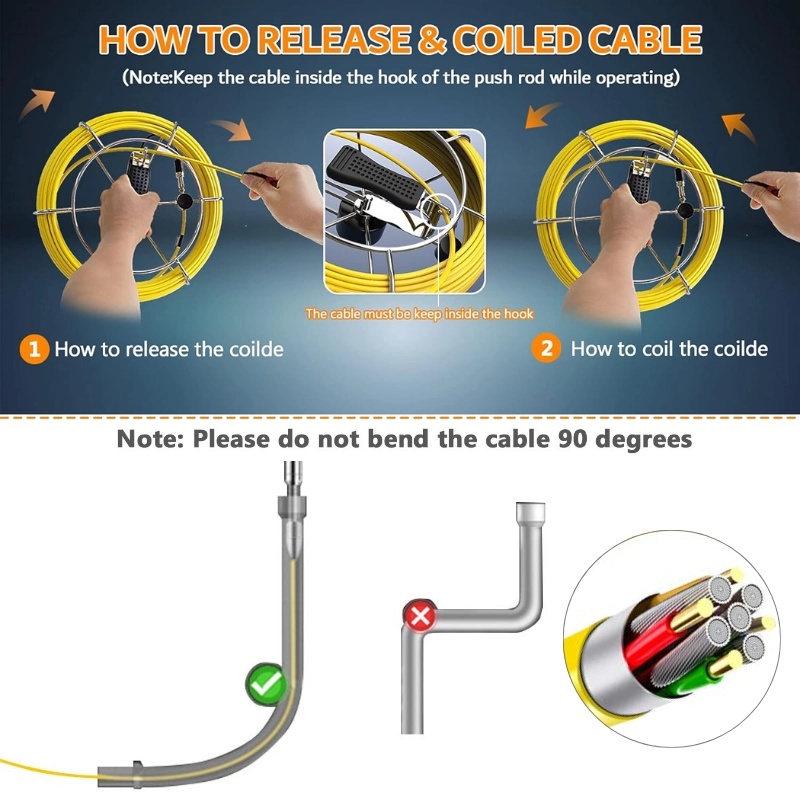

- 1 x 35-metre cable

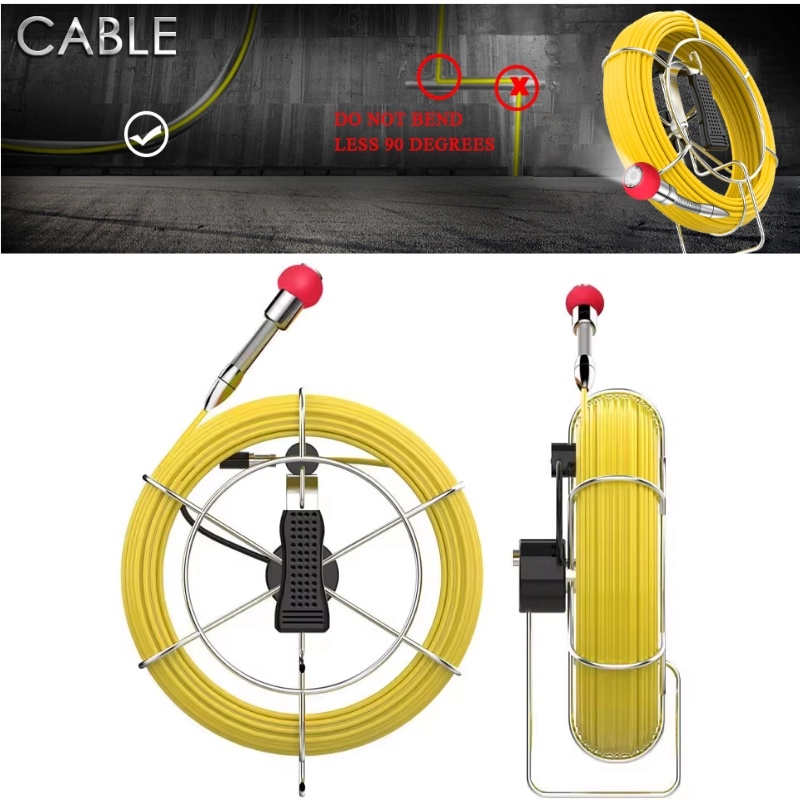

- 1 x cable reel -
1 x camera mounting bracket with wheels

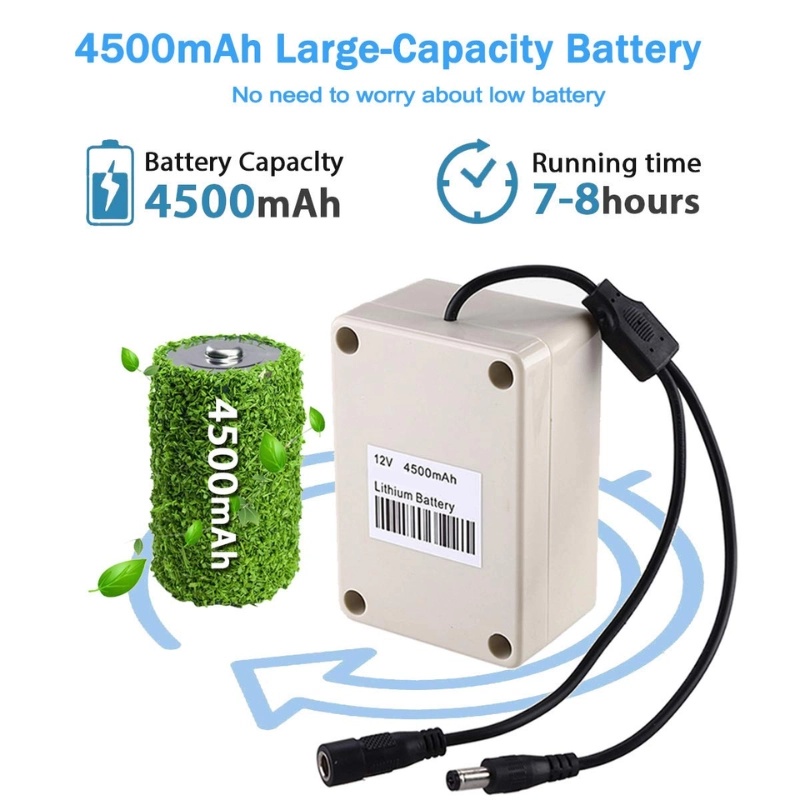

- 1 x rechargeable battery
- 1 x rechargeable battery
- 1 x DVR
control panel - 1 x connection cable
- 1 x spanner
- 1 x aluminium case
- 1 x user manual

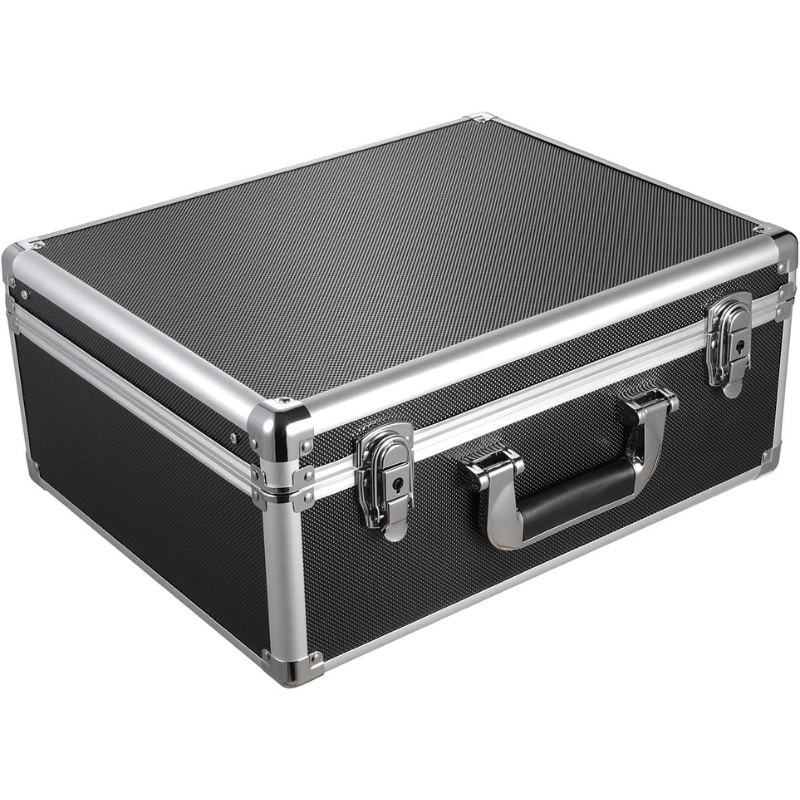

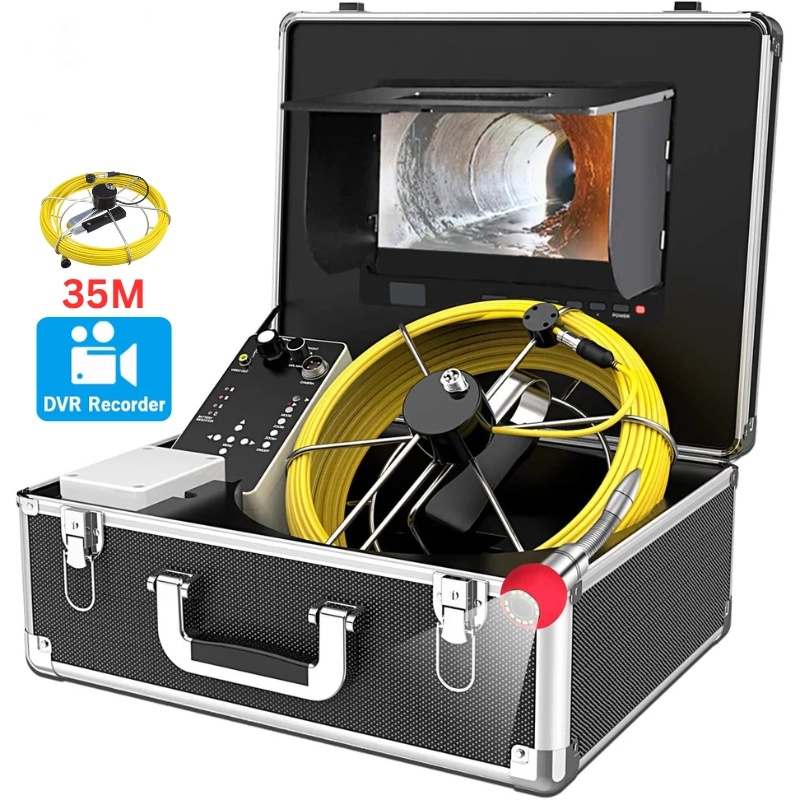

All parts are stored in an aluminium alloy case for convenient transport.
