Sewer inspection camera, 50 metres, iUni ICT5, DVR video recording, 7-inch display
BGN 1,972.63
BGN 1,640.92 (VAT included)
iUni® Original 30 Day Returns Free shipping over 119 € 24 Month WarrantyDescription
In accordance with Article 16(e) of GEO 34/2014, products for video inspection of sewers and pipelines that have been used by the consumer shall be excluded from return for reasons relating to health and hygiene.
Sewer inspection cameras CANNOT BE RETURNED, unless the products are returned sealed, with the original seal intact and showing no signs of use.
MAXIMUM VISIBILITY IN HARD-TO-REACH PLACES
The iUni ICT5 is a quality control camera and the first choice for professional inspection of drainage pipes, ventilation pipes, chimneys and many other hard-to-reach pipes.
Video inspection of sewers is necessary when you want to check the structural condition of the sewer system to determine whether there are defects or problems that need to be rectified, when you are trying to identify foreign objects in the pipes, and when you are trying to locate sources of ingress. The information provided by the video system helps specialist staff responsible for sewer monitoring or video inspection to visualise the overall condition of the drainage and collector pipes.
When they intervene to unblock a pipe using a pressurised water jet and continue to encounter a severe blockage, the workers carrying out the unblocking can only assume that there may be a blockage in a specific area of the pipe.
Video inspection is an indispensable procedure for determining the condition of ageing pipes or for verifying the work carried out.
7-INCH LCD MONITOR
The image will be displayed on a 7-inch colour monitor, equipped with a menu button/remote control for adjusting the image and view.
The colour monitor is also equipped with a plastic sun visor to ensure better visibility during outdoor inspections.
Specifications:
• Dimensions: 7-inch colour TFT LCD•
Pixels: 800 (H) x 480 (V)
• Power supply: 12V DC•
Language: English•
Aspect ratio: 16:9•
Operating temperature: -20°C to 60°C
CONTROL PANEL
Switch on the camera and LCD monitor from the control panel. You can also adjust the camera’s LED light. With the DVR recording function, the control panel comes with an 8 GB SD card included, and the maximum supported memory is 32 GB.
You can record images or audio via the DVR and then transfer the image/video to a computer.
Specifications:
• Power supply:
12V• Power consumption:
200mA• Storage: SD card with a maximum capacity of
32GB• Pixels: 720 x 576 (D1)
• Digital clock and digital calendar•
Battery level
display• Video/audio recording (DVR) YES, including Picture Shot
function• Format: AV
FLEXIBLE HD CAMERA

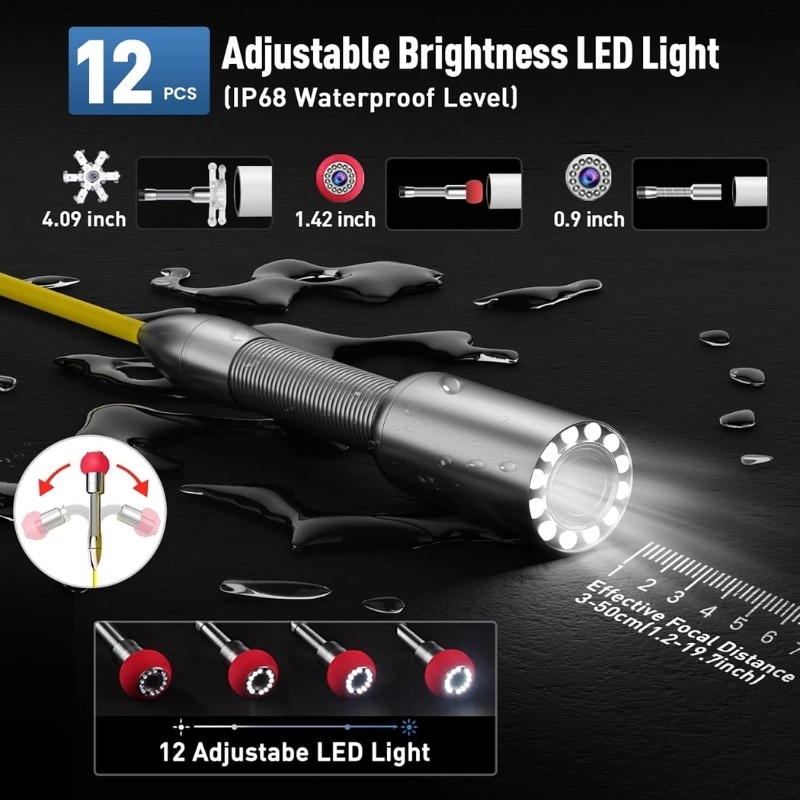

The camera features a flexible hinge for navigating around corners and a sapphire lens to resist scratches. The room is illuminated by 12 white LEDs, the intensity of which can be adjusted.
This camera can achieve a viewing angle of 92 degrees, and its average power consumption is 100 milliamps.
Specifications:
• Dimensions: 23mm x 120mm; front camera size –
23mm• Material: stainless steel•
Camera lens: sapphire glass•
Sensor size: 1/3-inch CCD or
CMOS• Pixels: 800 TVL HD•
Illumination: 12 white LEDs, adjustable•
Power consumption:
100mA• Power supply: DC
12V• Water resistance:
IP68• Operating temperature: -10°C ~ 50°C
4500mAh RECHARGEABLE BATTERY
The professional sewer video inspection camera features a powerful 12 V 4500 mAh lithium-ion rechargeable battery, which operates continuously for 7–8 hours when fully charged.
A power adapter is included in the kit.
It is very convenient to use outdoors without a power source.
Specifications:
• Battery capacity: 4500
mAh• Runtime: 7–8 hours•
Power supply – input: AC 90–240 V; output: DC 12 V 1000 mA

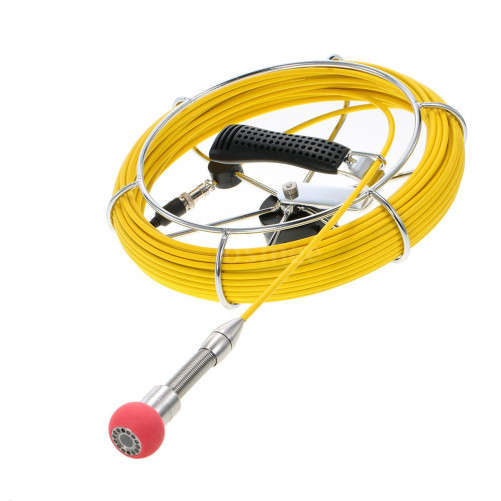

50m WATER-RESISTANT CABLE
The semi-rigid, corrosion-resistant, cold-resistant and tensile-resistant cable can be shaped and will retain its shape, providing you with a smoother inspection experience.
WARNING! Do not bend the cable at a 90° angle to avoid damaging or breaking it.
Specifications:
• Cable reel dimensions: 320 mm (diameter) x 110 mm (h)
• Cable material:
fibreglass•
Waterproof• Cable length:
50m• Stainless steel
reel• Diameter: 4.8 mm•
Colour: yellow

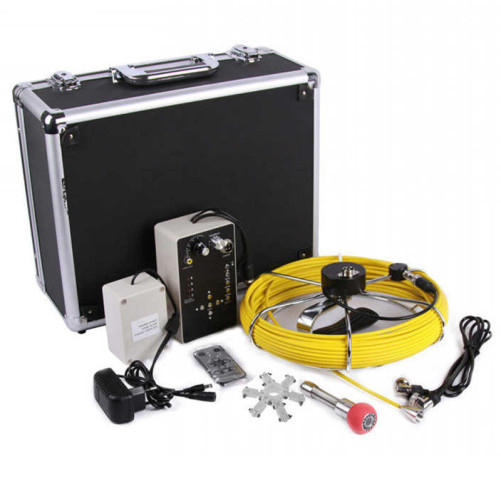

• 1 x 7" colour TFT LCD monitor•
1 x HD camera•
1 x connection cable•
1 x cable reel•
1 x remote control•
1 x wheeled guide stand for the
camera• 1 x rechargeable battery•
1 x battery•
1 x DVR control panel•
1 x key•
1 x aluminium case•
1 x instruction manual

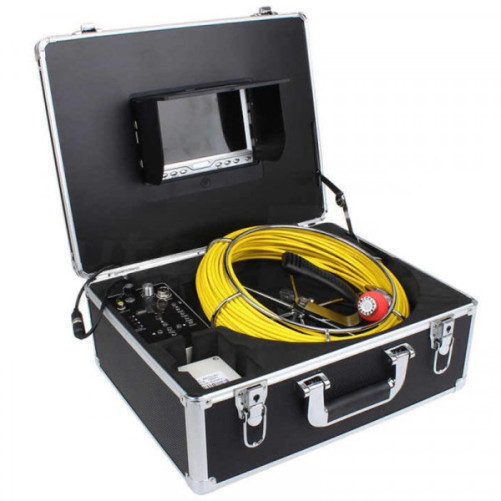

All parts are stored in an aluminium alloy case for convenient transport.
